General Specifications

Power Input

5V / 9V / 12V / 15V 3A, 20V / 4A

Signal-to-Noise Ratio

> 80 dB

Rated Output Power

1 x 90W RMS Woofer + 2 x 20W RMS Tweeter (AC power mode) 1 x 60W RMS Woofer + 2 x 15W RMS Tweeter (Battery mode)

Audio Specifications

Frequency Response

40 Hz - 20k Hz

Transducer - Tweeter (Inch)

2 x 0.75

Transducer - Woofer (Inch)

1 x 3.9 x 5.7

Transducer - Woofer (mm)

1 x 98 x 145

Transducer - Tweeter (mm)

2 x 20

Dimensions

Dimensions (Width x Height x Depth) (cm)

34.6 x 16.5 x 15.5

Dimensions (Width x Height x Depth) (in)

13.6 x 6.5 x 6.1

Weight (kgs)

2.9

Weight (lbs)

6.38

Control and Connection Specifications

Bluetooth version

6.0

Portable Speaker Specs - Supported Music File Formats

SBC,AAC,LC3

Connection Ports

USB-C

Bluetooth Profile

A2DP 1.4, AVRCP 1.6

Bluetooth Transmitter Frequency Range (GHz)

2.4 - 2.48

Bluetooth Transmitter Modulation

GFSK, π/4 DQPSK, 8DPSK

Bluetooth Transmitter Power

≤ 15dBm (EIRP)

USB-C Charge Out

5V / 3A, 9V / 2A , 11V / 2A

Battery

Cable Length (ft)

59

Cable Length (m)

1.5

Cable Type

JBL PD Adaptor

Charging time (hrs)

3.5

Maximum Operating Temperature

40°C

Battery Type

Li-ion 68Wh

Maximum music playing time (hrs)

28

Features

IP Code

IP68

JBL Portable App

true

Dustproof

true

Supports Auracast

Yes

Waterproof

Yes

Drop-proof

Yes

AI Sound Boost

Yes

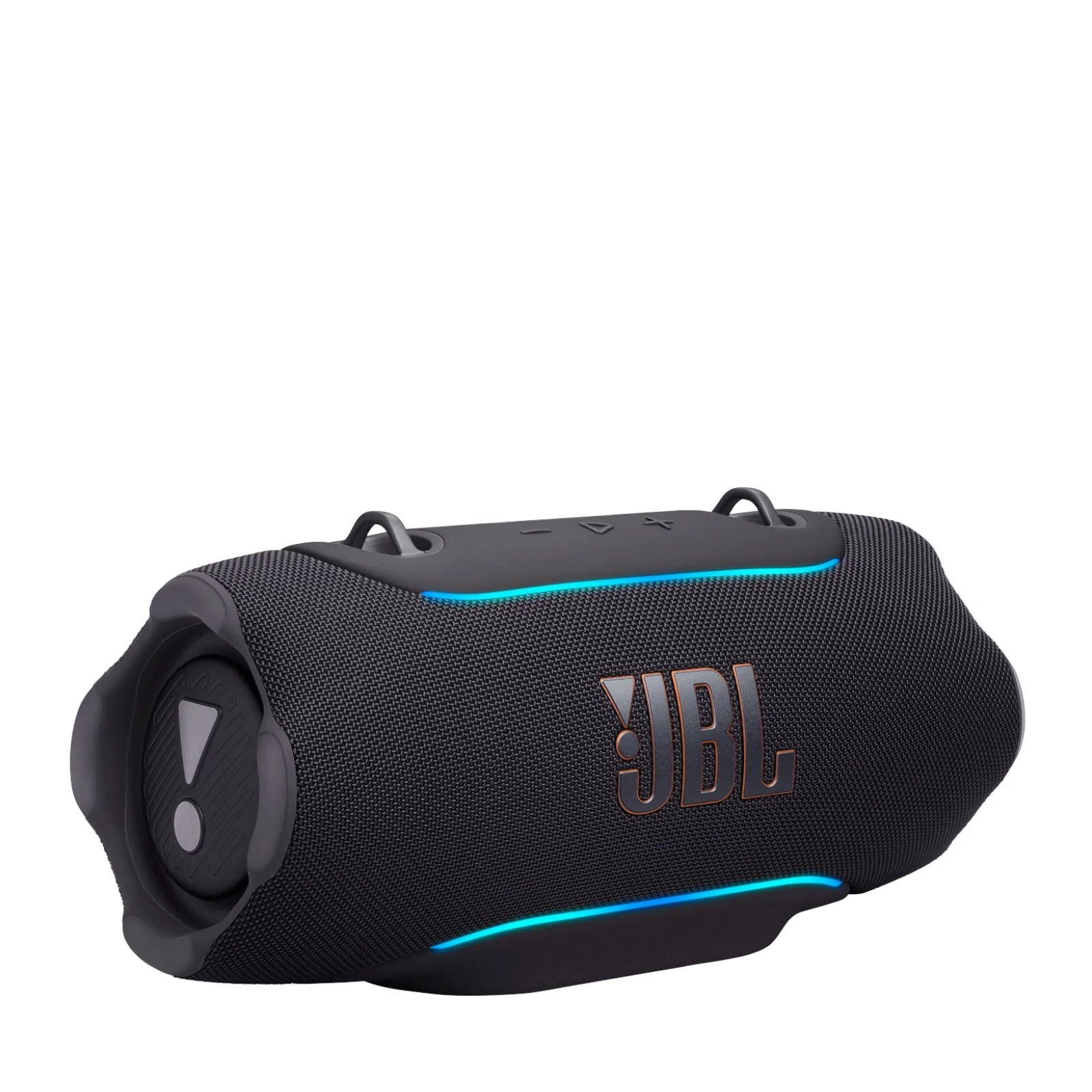

1 x JBL Xtreme 5

1 x PD adaptor (plug type varies by region)

1 x Quick start guide

1 x Warranty Card/Safety sheet
